Dual Fuel Conversion Kit for Diesel Generators
Aceget provides a cutting-edge dual fuel conversion kit for diesel generators that improves fuel efficiency, reduces emissions, and minimizes operational cost. We have an experienced team of skilled engineers and field technicians. Aceget follows the CPCB IV+ norms and offers a wide range of emission control solutions for diesel generators across India. We provide cost-effective dual fuel kits and RECD products that can reduce the diesel consumption up to 70% (Consumption might increase with various factors such as Diesel quality, engine condition, load, etc).
The range of our dual fuel solutions for diesel generators is from 125 kVA to 2500 kVA. We used the latest technologies in the dual fuel conversion kit, which reduces the consumption of diesel. This conversion kit is developed to operate the engine with a 30:70 ratio of fuels. The new DG sets are operated with 30% of diesel and 70% of natural gas (the ratio varies according to the engine condition). We aim to provide the latest Genset at low cost and reduce the carbon emissions that are very harmful to the environment.
GET A QUOTE
Weather
Resistant
Water
Resistance
Maintenance
Free
Stainless
Steel
Reduce
Pollution
Low
Cost
What is a Dual Fuel Kit for DG Set?
Basically, a dual fuel kit is a retrofitting system that is designed to convert a diesel generator into a dual fuel generator. With this kit, the diesel Gensets are run on dual fuel: mixture of diesel and natural gas. After the installation of this kit in the DG sets, the consumption of diesel is less than before. For example, if your generators consume 10 liters of diesel per hour, with the dual fuel kit, they may consume approximately 3-4 liters of diesel per hour. The rest of energy is supplied by natural gas.
Working Principle of Retrofit Emission Control Device (RECD)
The RECD is installed on the exhaust port of a DG set to reduce the harmful emissions. Then the exhaust of the diesel set passes through the RECD and ceramic filter in a stainless steel housing captures the harmful particles. A ceramic filter contains many tiny and parallel pores which is separated by thin walls and allow the air to pass. These small pores catch the dust particles(PM 2.5 to PM 10) from the diesel exhaust and reduce the emission.
Emission control system also use alkaline metals, which helps you to perform oxidation process fastly by capturing the oxygen from the air. Normally it emission control device take some time to clean and regenerate the oxygen but ACEGET’s device has advance technology it will complete the whole process earlier than usual.
Select the Right Emission Control Device for DG Set
KVA rating for DG sets is a main factor to choose a RECD because it depends upon exhaust volume, particulate load, and electrical needs. If you are seeking right RECD for DG Sets you can choose according to your business needs.

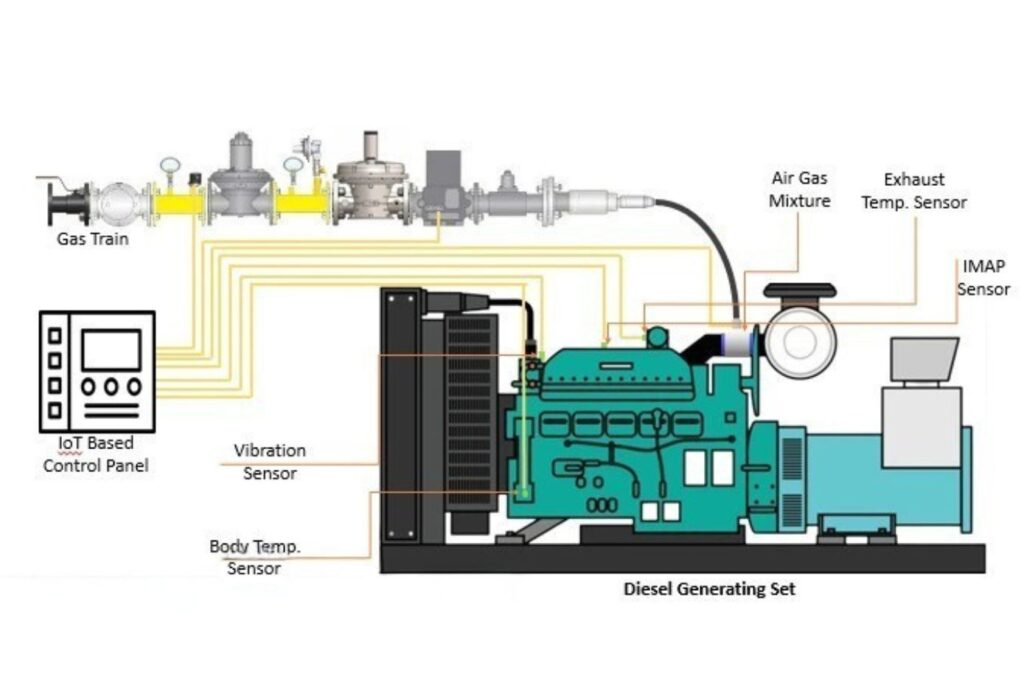

How does our Dual Fuel Conversion Kit Work?
Our dual fuel kit works, allowing diesel generators to run on a mixture of diesel and natural gas. The use of gas in dual fueling is provided either through a pipeline or local storage. There will be no changes in the existing diesel setup, just add a gas supply pipe for efficient combustion. The gas that you stored in the cylinder or a pipe passes through the pressure regulator. Then gas flows through the filter and solenoid valves to control. After that, it purifies the gas before entering into the engine. Then it allows the engine to run with the gaseous fuel that is used as a primary fuel.
The fuel gas goes to the cylinders through the Gas train into an Air-Gas Mixer that is provided by a dual fuel system. Proven gas engine components and powerful actuation and control units form the foundation of dual fuel systems. The use of two fuels improves efficiency and reduces emissions. If the gas supply is interrupted then ECU (Electronic Control Unit) switches the generator back to the 100% diesel mode.
Components of Aceget’s Dual Fuel Kits for the DG Sets
Gas Flow Control Unit
Air-Gas Mixer (AGM)
Electronic Control Unit (ECU)

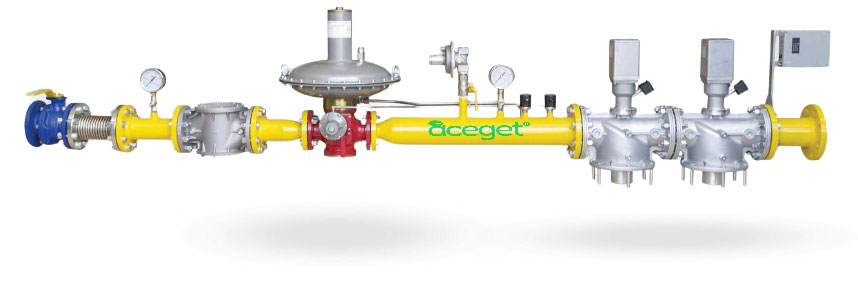

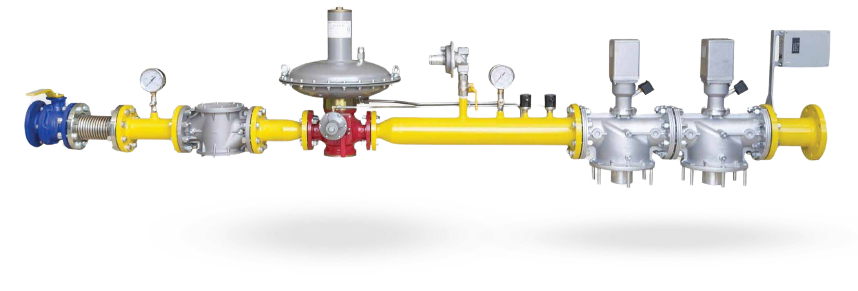

Gas Train components (Solenoid Valves, gas filter and Safety Sensors)
Benefits of Our Dual Fuel Kit for DG Sets
- Fuel Cost Savings: Our dual fuel system reduces the fuel cost. The DG sets runs with two fuels, one is diesel and second is economical gaseous fuel like CNG, LNG, LPG, etc. The use of gaseous fuel has an impact on the cost, because it reduces the consumption of diesel.
- Eco-Friendly Operation: Aceget’s dual fuel DG sets produce less carbon, nitrogen, and other harmful gas.
- Extended Engine Life: Our dual fuel system helps in increasing the genset’s life, compared to use of 100% diesel. The cleaner combustion process reduces the carbon deposits.
- Operational Flexibility: We use ECU technology, which allows generators to automatically switch back to the only diesel mode in the case of gas supply interrupted.
- Low Maintenance: We aim to reduce the maintenance cost of gensets. The use of gas leads to cleaner engine interiors, meaning fewer oil changes, reduced soot formation, and lower maintenance costs over time.
Components of Aceget’s Dual Fuel Kits for the DG Sets
| Parameter | Description |
|---|---|
| Compatible DG Capacity | 125 kVA – 2500 kVA |
| Fuel Options | CNG, PNG, LPG, Bio-Gas |
| Diesel Replacement Ratio | 50–70% (Load-dependent) |
| Control Type | Fully Automatic Electronic Control |
| Safety Features | Gas leak detection, automatic shutdown |
| Installation Time | 3–5 hours per DG set |
Technical Specifications of Aceget’s DFK Solution
|
Parameter |
Description |
|
Compatible DG Capacity |
125 kVA – 2500 kVA |
|
Fuel Options |
CNG, PNG, LPG, Bio-Gas |
|
Diesel Replacement Ratio |
50–70% (Load-dependent) |
|
Control Type |
Fully Automatic Electronic Control |
|
Safety Features |
Gas leak detection, automatic shutdown |
|
Installation Time |
3–5 hours per DG set |
Why Choose Us?
Aceget is one of the leading organizations in the field of Genset traders in India. Aceget uses the latest technologies that affect the product’s efficiency. We claim an approximate 96% reduction of emissions (it depends on multiple factors), and minimize the consumption of diesel.
- Certified & Reliable Technology: Our dual fuel kits are CPCB and NGT certified. We covered all the important factors with Indian emission standards like safety, reliability, and compliance.
- Installation & Support: Aceget offers end-to-end installation, evaluation, and 24/7 customer support for all the major Gensets.
- Customized Solutions: Our dual fuel kits are customized to your DG capacity and operational needs, ensuring maximum efficiency and smooth integration.
- Expert Engineering Team: We have skilled team of engineers and technicians, and we make our dual fuel system the best among others.
